Key Takeaways
Maintaining appropriate hydraulic pressure is vital for long-term gearbox performance and reliability. Addressing pressure drops proactively prevents catastrophic failure and improves the lifespan of your mechanical systems.
- Regular fluid and filter changes prevent contaminants from blocking flow paths.
- Monitoring pressure gauges provides early warning of mechanical wear in pumps.
- Unusual noises or shifting delays often indicate baseline pressure loss.
- Use manufacturer-approved lubricants to maintain correct thermal and viscosity stability.
- Periodic sensor calibration ensures your controller receives accurate system data.
Understanding gearbox oil pressure systems
Gearbox functionality relies on the precise management of hydraulic force to facilitate efficient power delivery. This complex system ensures that internal components remain lubricated while also providing the necessary pressure for shifting mechanisms to engage correctly. Understanding these foundational mechanics is the first step in managing potential gearbox oil pressure problems effectively.
The role of hydraulic pressure in power transmission
Hydraulic pressure acts as the medium for transferring energy between the prime mover and the mechanical gears. By utilizing pressurized fluid, a gearbox can exert specific forces on clutches and bands to initiate gear transitions smoothly. This process removes the need for brute mechanical force, allowing for refined power management in heavy-duty machinery.
Typical operating pressure ranges in modern gearboxes
Engineers define operating windows based on specific application requirements, ensuring that systems run within safe parameters for both temperature and load. Stability within these numbers prevents overheating and mechanical slippage, which are symptoms of failed pressure regulation. Manufacturers often specify these ranges in technical manuals to assist operators in performance monitoring.
Key components involved in fluid pressure regulation
Reliable systems depend on a series of critical parts, including relief valves, pumps, and sophisticated sensors. These elements work in concert to ensure fluid cycles correctly throughout the entire housing, resisting the effects of thermal expansion and load variations. When these components perform as expected, the system maintains high levels of operational uptime and responsiveness.
Common causes of low gearbox oil pressure
Identifying why a system loses pressure starts with an inspection of the external hardware and internal circulating pathways. When fluid fails to circulate at the required rates, it typically points toward either structural breaches or internal degradation of the pumping unit. Maintaining structural integrity is essential to avoid common performance issues.

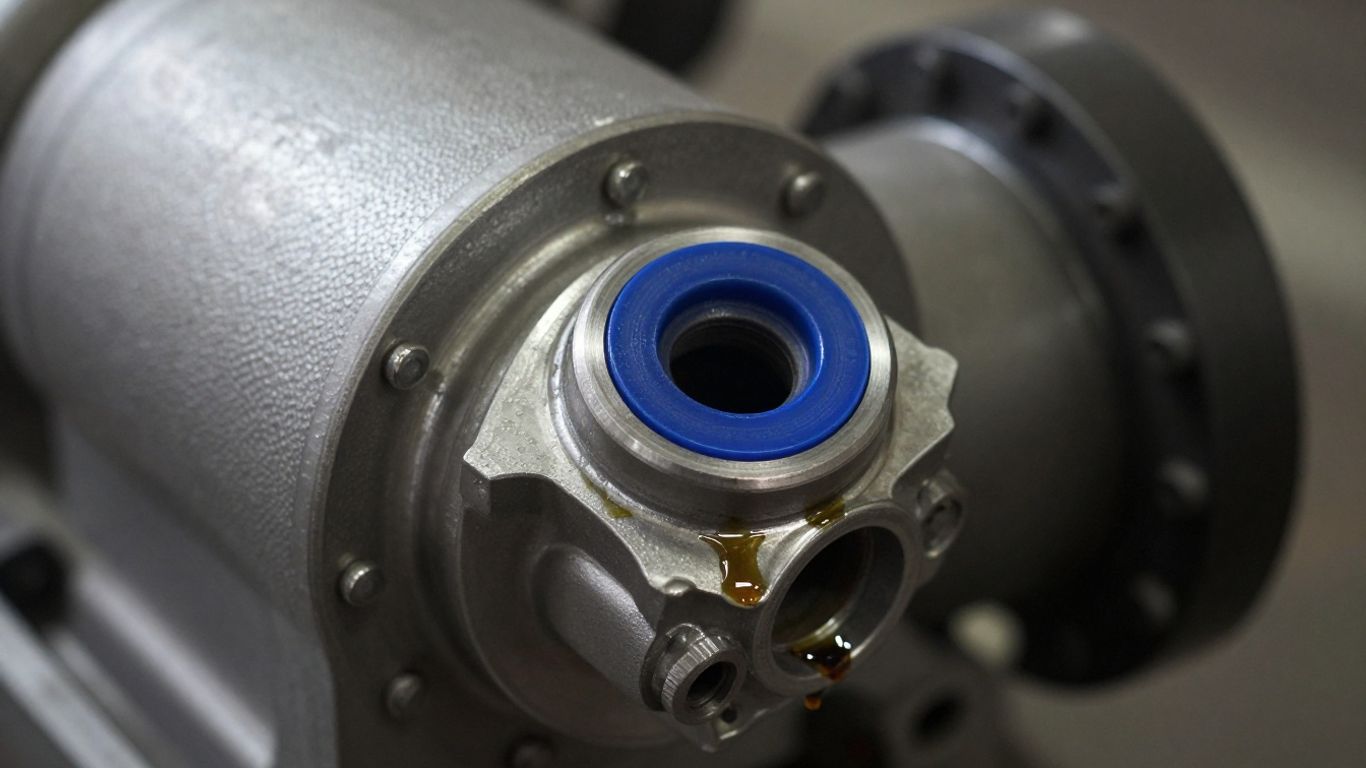

Fluid loss from external leaks and damaged seals
External leaks represent the most significant threat to sustained hydraulic integrity in transmission units. Every Caterpillar machine is subject to significant environmental vibration, which can compromise gasket seals over thousands of hours. Once a seal fails, oil escapes, causing the reservoir level to drop and overall system pressure to plummet regardless of pump performance.
Mechanical wear within the oil pump assembly
Inside the unit, the oil pump serves as the heart of, or central heart, for lubrication cycles. If the vanes or internal gears of the pump wear down significantly, the component loses its volume displacement capability. This mechanical degradation means the pump cannot push enough fluid through the system to maintain the required operating pressure levels needed for smooth shifting.
Obstructions in the pickup screen or circulation system
Debris within the fluid can easily become trapped in narrow passages or the main pickup screen. Such blockages restrict the free flow of fluid back into the pump, starvation the pressure regulation circuit of its supply. Regular cleaning of these filters and screens is a standard procedure in any marine gearbox preventative maintenance program.
Identifying symptoms of pressure failure
Operators often detect pressure drops through tactile changes in how the equipment feels during daily operation. Recognition of these indicators allows for immediate intervention before the cost of repairs escalates into total transmission replacement. Pay close attention to any changes in the way the gear changes occur or audio feedback from the housing.
Interpreting transmission control module warnings
Modern systems rely on electronic monitoring to detect irregularities before they turn into major failures. For instance, an Endurant XD Series system uses specific controller logic to flag pressure faults immediately. These error signals provide the precise data needed to locate where the electronic monitoring system detected the deviation.
Recognizing delayed engagement and shifting hesitation
Delay in shifting suggests that the hydraulic pressure is too low to actuate the clutch pack effectively. This results in sloppy engagement or extended intervals between gear ratio changes during acceleration. If you notice these performance lags, the system is likely struggling to maintain its necessary hydraulic output.
Detecting abnormal mechanical noise during operation
Grinding or whining sounds often coincide with a lack of lubrication at the gear interfaces. When pressure is insufficient to hold components in place, gear lash creates audible noise as parts shift against each other. The following table summarizes the relationship between sound and potential root causes:
| Audible Indicator | Primary Symptom | Suspected Component |
|---|---|---|
| High-pitched whine | Pump cavitating | Damaged pump drive |
| Grinding metallic sound | Gear surface wear | Filter/Screen clog |
| Intermittent clicking | Hydraulic surge | Pressure relief valve |
These sounds serve as auditory warnings that the mechanical components are operating under immense stress due to insufficient lubrication buffers.
Diagnostic procedures for pressure issues
Systematic troubleshooting helps isolate the variable causing the pressure drop, whether it is electronic, mechanical, or fluid-based. By focusing on data-driven diagnostics, technicians can avoid the trial-and-error approach that often leads to prolonged downtime.
Validating sensor data with a mechanical gauge
While software monitors are helpful, they can provide misleading information if a transmission oil pressure sensor has failed electrically. Always verify digital readouts by tapping into the system with an analog mechanical gauge to get a true pressure reading from an active port in the main transmission line.
Analyzing current fault codes from the transmission controller
Diagnostic tools are powerful for narrowing down the scope of the problem. Modern processors log specific events when data drifts outside expected ranges, offering clues about the origin of the fault. Using approved diagnostic software, you can isolate transient errors from persistent hardware issues that actually threaten the drivetrain.
Inspecting fluid samples for metal shavings or debris
Fluid analysis remains one of the most reliable ways to look inside a sealed gearbox without dismantling it. By checking oil samples for metallic content, you gain insight into the wear patterns of internal gears and bearings. This step is a comprehensive method for evaluating whether your system is suffering from catastrophic internal disintegration.
Preventative maintenance to avoid pressure drops
Consistency in maintenance is the hallmark of reliable equipment ownership. By following a rigid schedule, you minimize the risk of surprise failures and keep the internal hydraulic systems performing efficiently throughout the product lifespan.
Establishing a consistent fluid and filter replacement cycle
Adhering to the manufacturer’s service intervals is the most effective way to eliminate pressure fluctuations. Fresh fluid ensures that the pumping system achieves the intended viscosity at all operating temperatures, which is critical for consistent pressure management.
Monitoring gasket integrity to prevent pressure loss
Periodic inspections of external ports and gaskets should be part of a daily walk-around. Catching minor seepage early prevents the slow draining of fluid that eventually creates significant low oil pressure conditions inside the transmission case.
Importance of using precise manufacturer-approved lubricants
Using the wrong oil can ruin a transmission just as quickly as a malfunctioning pump. The following checklist ensures that you maintain the correct parameters during every top-off or full drain-and-fill event:
- Verify the fluid type matches the manufacturer’s technical specification.
- Use a calibrated torque wrench for all housing bolts to prevent leaks.
- Check for the correct O-ring size before replacing any filter.
- Ensure the oil reservoir is filled to the cold/hot level marks as directed.
By following these rigorous maintenance steps, you ensure the gearbox continues to transfer power reliably for your operators.
Conclusion
Addressing pressure issues involves a combination of regular monitoring, precise diagnostic testing, and strict adherence to maintenance schedules. Taking prompt action when symptoms first appear protects the investment in your machinery and ensures consistent performance across all loads. By prioritizing these mechanical health checks, you effectively mitigate the risks of costly hardware failure and maximize equipment uptime in any demanding working environment.
Frequently Asked Questions
How often should I check my gearbox oil pressure?
It is generally recommended to monitor pressure during initial startup and under regular load conditions, or as specified in your equipment maintenance manual, to establish a performance baseline.
Can a bad sensor trigger pressure warnings?
Yes, an electronic sensor failure often reports incorrect voltage signals that the controller interprets as a pressure drop, necessitating verification with a mechanical gauge.
Why does my gearbox make noise when cold?
Cold oil has higher viscosity and flows slowly, which may lead to momentary pump starvation until the fluid reaches its intended operating temperature and consistency.
What are the dangers of running with low oil pressure?
Insufficient pressure restricts the essential lubrication required by gears and bearings, which creates excessive friction that leads to premature component wear or total seize-ups.
Does fluid age affect hydraulic pressure?
Over time, fluid loses its additives and thermal stability, leading to oxidation and varnish buildup that can clog screens and degrade the efficiency of internal pumping systems.
Is it safe to top off oil without a drain?
Topping off is acceptable only for temporary maintenance; however, you must investigate the cause of the loss, as adding oil does not fix a major leak or mechanical failure.
What do metal shavings in the fluid mean?
Metal particles indicate that internal components like gears, bearings, or clutches are experiencing extreme friction or mechanical failure, which requires immediate disassembly and inspection.
